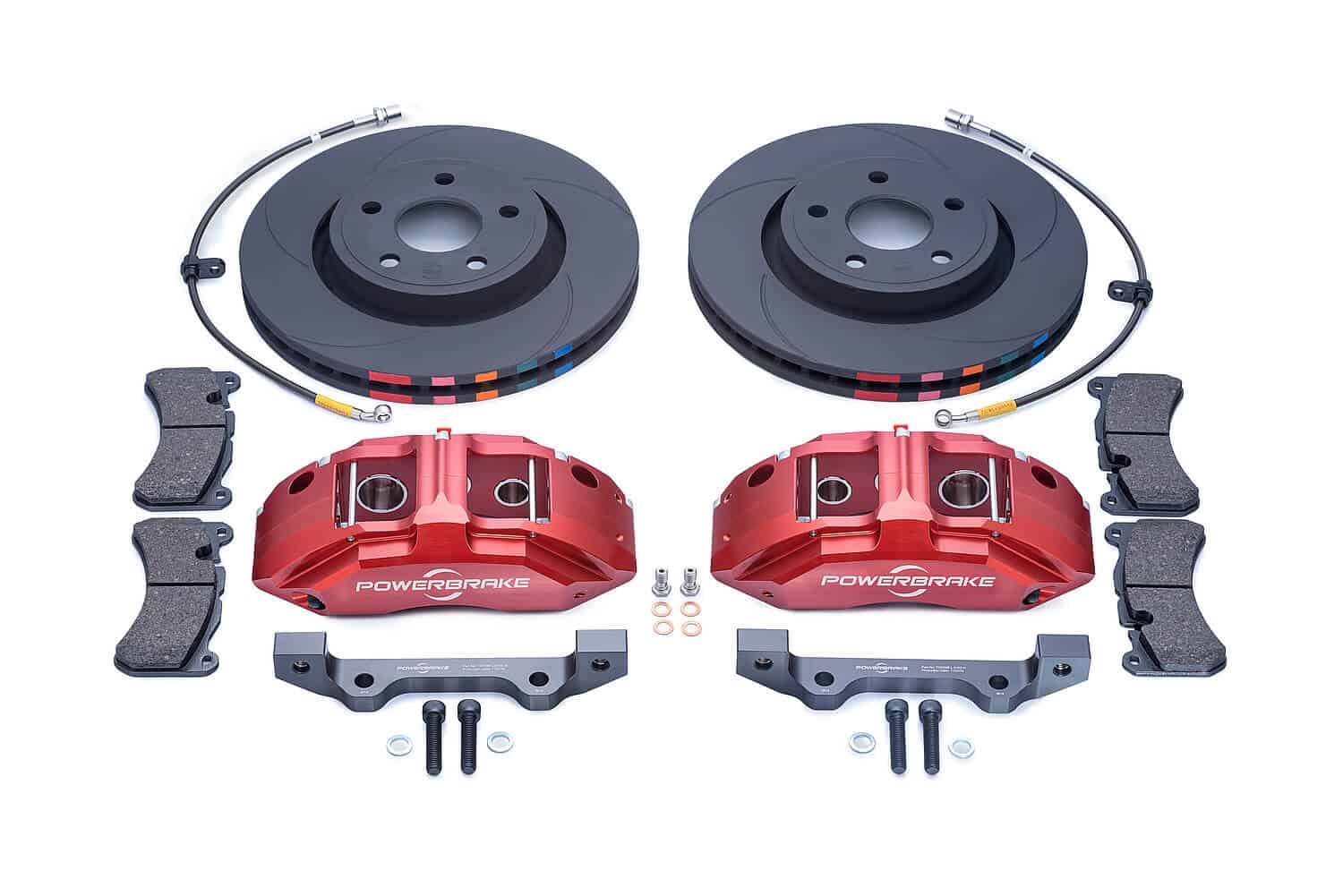

X-Line Big Brake Kit
- Upgraded performance brake kits
- X-Line billet 6-piston off-road calipers.
- Larger diameter rotor maximized for the truck application
- Rotor has internal curved, directional cooling vanes.
- Billet caliper mounting brackets.
- Stainless steel braided brake lines.
- All necessary mounting hardware for quick, easy bolt-on installation.
- Comprehensive install and bed-in instructions.
Rotors
The rotors utilized in our X-Line 4×4 big brake kits are crafted from a proprietary high-carbon cast iron alloy, ensuring exceptional durability and stability even during high thermal loads experienced in both street and off-road driving. Notably, these rotors feature curved, directional cooling vanes, significantly enhancing cooling efficiency by maximizing surface area and airflow compared to factory or OEM rotor designs.
For our X-Line 4WD rotors, we employ the proven “AT” slot pattern, striking a fine balance between functional aspects such as efficient removal of sand, mud, and water (especially when driving in rainy conditions or after river crossings) and practical aspects such as minimizing noise, vibration, and harshness (NVH) during braking. This slot pattern also delivers excellent bite and release characteristics.
Every single Powerbrake rotor undergoes precise measurement for run-out and disc thickness variation (DTV) using Swiss measuring equipment. We prioritize quality control without relying on batch or statistical checks – each rotor undergoes individual measurement. Our machining tolerances surpass the industry norm by up to threefold.
Rotor Surface Coating
All our X-Line 4WD rotors feature a proprietary black surface coating. Before applying this coating, the rotors undergo chemical de-greasing to ensure the absence of machining fluids or contaminants that could negatively impact brake performance. The coating exhibits exceptional heat resistance and flexibility, preventing flaking or peeling during the rotor’s thermal expansion and contraction cycles.
Our X-Line 4WD rotors require no solvent-based cleaning or preparation. Simply make sure the car’s hub is clean and install the rotors as they come out of the box. The brake pads will remove the black coating in the pad track areas within the first 4-5 brake applications, while the un-swept areas of the rotor will retain the coating. Although the primary purpose of our rotor coating is to eliminate oils and contaminants during fitting (rather than providing corrosion protection), practical experience has shown that the non-swept areas of our coated X-Line 4WD rotors effectively resist unsightly surface rust formation, depending on environmental conditions. This results in a visually appealing appearance visible through the truck’s wheels.
Rotor Maximum Temperature Recording (MTR) System
All our rotors feature our MTR system that provides a permanent record of the peak operating temperature reached by the rotor. This information is extremely valuable for understanding what is happening in your brake system. The thermal-paint tabs are applied to the outside diameter of the rotors (on both the inboard and outboard rotor plates). Each single-change paint color will change to white when a specific temperature is reached, hereby providing a record of the peak operating temperature of the rotor.
- Blue paint changes color at 527 deg F
- Green paint changes color at 860 deg F
- Orange paint changes color at 1022 deg F
- Pink paint changes color at 1166 deg F
Caliper Construction
At Powerbrake, we firmly believe in the advantages of machining our multi-piston calipers from solid billet. All our calipers are precision-machined using high-grade aerospace aluminum billets. Although machining from billet is an expensive manufacturing method, it yields a final product with exceptional strength and rigidity.
How do we offer our billet X-Line 4WD calipers at competitive prices? We achieve this through substantial investments in cutting-edge 5-axis CNC production equipment, ensuring maximum efficiency in caliper machining. The combination of machining from billet and the caliper designs enhanced through Finite Element Analysis (FEA) results in calipers with an impressive rigidity-to-size ratio. The slender profile of the calipers reduces unsprung weight and enhances wheel clearance.
Caliper Surface Finish
Our X-Line 4WD calipers are offered in two finish options: Red anodize (type-2) or Dark Gray hard anodize (type-3). The anodize dyes chosen for our Red finish provide excellent UV and temperature resistance, ensuring long-term color retention. The Dark Gray hard anodize is our most resilient finish.
Caliper Logos
Our logos and other markings are applied to our calipers using advanced laser technology. This creates visually appealing contrast between the logo and the caliper color. The logos on our X-Line 4WD calipers will not be damaged by heat, brake fluid or solvents, as is the case with paint in-lay logos used by many of our competitors. Brake calipers operate in a very challenging environment. They are exposed to dirt, carbonized brake pad material, constantly fluctuating temperatures and constantly changing environmental conditions. Powerbrake has focused on ensuring that our X-Line 4WD brake calipers will remain looking good under the widest possible range of operating conditions.
Caliper Cross-Bolts
The high-tensile caliper cross-bolts used in the assembly of our X-Line 4WD calipers are European sourced and coated with a silver zinc flake coating. This coating offers exceptional corrosion resistance, while having no negative effect on bolt strength at all. The bolt positions of our X-Line 4×4 calipers are the result of extensive FEA analysis and deliver optimum caliper rigidity. The cross-bolts are inserted into the caliper from the inboard side resulting in maximum wheel clearance which is important on 4WD trucks.
Caliper Pistons
Powerbrake X-Line 4WD calipers are equipped with stainless steel pistons. While manufacturing caliper pistons from stainless steel is considerably more expensive than using aluminum pistons like many of our competitors, the benefits justify the investment. Stainless steel has a significantly slower heat transfer rate compared to aluminum. As a result, stainless steel pistons slow down the heat transfer from the brake pads to the caliper seals and brake fluid. This reduces the risk of brake fluid boiling and extends the lifespan of the seals. Our caliper pistons are crafted from a special grade of stainless steel that boasts more than double the strength of regular 304-grade stainless steel (in terms of yield and ultimate tensile strengths), while maintaining the same level of corrosion resistance.
Internal Fluid Crossovers
Our X-Line 4WD calipers feature internal fluid crossovers and hidden bleed screws for protection against damage from stone impacts. Every part of the X-Line 4WD caliper is aimed at maximum usability and durability in tough off-road or dirt road conditions.
Caliper Maximum Temperature Recording (MTR) System
All Powerbrake X-Line 4WD calipers come equipped with our MTR system, which offers a permanent record of the caliper’s maximum operating temperature. This feature is highly valued by customers as it provides valuable data for making informed decisions regarding brake fluid selection and more. The inclusion of the Max Temp Recording system, at no additional cost, sets Powerbrake apart as a unique offering in the global market.
Caliper Hardware
All other caliper hardware components (including: pad retaining pins, bleed screws and pad abutments) are manufactured from stainless steel to ensure the highest levels of corrosion resistance.
Caliper Mounting Brackets
X-Line 4WD caliper mounting brackets are meticulously machined from billet aircraft-grade aluminum alloy, FEA enhanced for optimal strength and rigidity, and hard anodized (type-3). It is important to note that we utilize stainless steel thread inserts for the radial mount bolts that secure our X-Line 4WD calipers to the caliper mounting brackets. This is due to the solid caliper reinforcement bridge featured in our X-Line 4WD calipers, which requires the removal of the two caliper radial mount bolts for pad replacement. By using thread inserts in our mounting brackets, we ensure maximum thread strength and durability. Similar thread inserts are widely employed in the aerospace industry, thanks to their superior strength compared to conventional aluminum threads.
Brake Lines
The brake lines included with our X-Line 4WD big brake kits feature an extruded Teflon inner lining that is highly resistant to the aggressive chemical properties of modern brake fluids, as well as being able to handle far higher temperatures than rubber. The Teflon lining is covered by strands of tightly woven stainless steel braid that acts as the muscle of the hose, providing incredible resistance to expansion under pressure. Our stainless braid is covered with a polymeric outer layer that prevents dirt from getting between the stainless braid and the Teflon inner lining. The resulting hose assemblies offer the best possible pedal feel, matched to excellent durability and corrosion resistance.
Brake Simulation Software
As with all Powerbrake big brake kits, each X-Line 4WD kit is tailored to the specific target vehicle. This involves careful software modeling of correct brake balance, brake torque outputs and pedal feel using our proprietary brake simulation software (developed in-house) which is a key element in the success of our X-Line 4WD big brake kits. The software allows us to enter all aspects of the factory brake system on the car as well as all key data affecting chassis dynamics under braking. Our engineers can then simulate braking events at various negative G’s and analyze dynamic weight transfer for the chassis in question.
They are then able to perfectly optimize brake torque outputs delivered by our big brake kit by changing rotor diameters, caliper piston ratios and brake pad friction co-efficient. The result is that the caliper piston diameters / ratios, rotor sizes and pad compounds in each kit are tailored to the vehicle platform in question. Our X-Line 4WD big brake kits will perfectly integrate with the ABS, EBD and other stability control systems on the vehicle. When driving a vehicle fitted with a Powerbrake X-Line 4WD big brake kit, you will feel this attention to detail coming through by the way that the vehicle chassis reacts under braking.
Brake Pads
The Powerbrake X-Line 4WD calipers are designed around a pad profile which is available in wide range of brake pad compounds from most pad manufacturers worldwide. Our PB05 brake pad compound is in our opinion the very best pad compound on the world market for 4WD trucks. This ultra-high-performance material offers a big step up in performance and fade resistance over the pads that originally come with the truck. Stopping power, pedal feel and modulation are simply unmatched. In addition to the class-leading performance this pad compound will offer a good wear life and mileage.
Which is best for you?
OEM
Stock Vehicle
Safe GVW Brake Calculator
Price
Install Rating
D-Line
Powerbrake Rotor & Pad Kit
Safe GVW Brake Calculator
Price
Install Rating
X-Line
Powerbrake Big Brake Kit
Safe GVW Brake Calculator
Price
Install Rating
| Make | Ford, Jeep, Lexus, Toyota |
|---|---|
| Model | 4-Runner (4th Gen), 4-Runner (5th Gen 4WD), Bronco 2.3, F-150 (incl Raptor), FJ Cruiser, Gladiator, GX460, GX470, Landcruiser 100, Landcruiser 200, Landcruiser 80, LX570, Ranger 2.3 Turbo, Tacoma 2nd Gen, Tacoma 3rd Gen, Tundra 1st Gen, Tundra 2nd Gen / Sequoia, Tundra 3rd Gen, Wrangler (All), Wrangler (Sahara / Rubicon), Wrangler (Sport) |
| Year | 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 |
| Caliper Color | Grey Hard Anodize, Red Anodize |
Why should you consider upgrading the brakes on your 4WD?
The rapid worldwide growth in modifying 4WD trucks has created a significant need for well-engineered brake upgrade solutions. Overland enthusiasts are fitting roof-top tents, bull bars, long-range fuel tanks, water tanks, additional battery systems, storage systems, additional spare wheels etc. All of these accessories significantly increase vehicle weight, which severely affects brake performance and results in increased stopping distances. Larger wheel and tire packages are also becoming increasingly popular and these weigh a lot more than the factory-fitted wheels and tires. This additional rotational mass again severely affects brake performance, leading to increased stopping distances. More weight & more rotational wheel mass = more energy, resulting in increased brake temperatures and ultimately brake fade.
What will a big brake kit do for you?
Powerbrake X-Line 4WD big brake kits are engineered from the ground up to be the upgraded performance brake kit available on the world market for 4WD vehicles. They deliver significantly improved brake performance, reduce brake fade and vastly improve pedal feel and modulation. The performance gains achieved when fitting our big brake kits vastly outweigh the benefits that can be achieved by fitting upgraded, standard diameter rotors and pads. With larger wheels & tires and additional weight added the truck a big brake kit will stop you faster in an emergency situation, it will give you back the confidence in driving & stopping your truck and it will absolutely improve the brake consistency & heat management when you have to do multiple brake applications like coming down a mountain pass.
Why choose Powerbrake?
We are totally focused on designing, manufacturing and testing performance brake systems for 4WD and overland trucks. We are a part of the community and are passionate about adventuring in our trucks, making them safer and more confident to drive. Our X-Line big brake kits were designed by the same team members that designed our renowned R-Line off-road race systems and they are manufactured on the same equipment, in the same factory.
All design features found in our civilian X-Line 4WD big brake kits were directly developed through our extensive involvement at the highest levels of international off-road racing. The exact same technology, features and materials found in our Dakar Rally winning R-Line off-road race brake systems can be found in our 4WD big brake kits. When we claim “direct technology transfer” from our race to our 4WD or overland brake systems, we mean it. Every single feature in our X-Line 4WD calipers can also be found in our current production R-line off-road race calipers that we supply to leading Dakar Rally teams ensuring your truck gets the most tested brake 4WD brake system available.
What does a big brake kit include?
- X-Line billet 6-piston off-road calipers (featuring stainless steel pistons, internal fluid crossovers, protected bleed screws, internal wiper seals, ultra-high-temp pressure seals, all stainless-steel hardware, MTR max temp recording system and pad anti-rattle springs).
- Matched high-performance brake pads
- Larger slotted rotors (featuring curved / directional internal cooling vanes, MTR max temp recording system and our proprietary black coating that ensures fastest bed-in time).
- Billet caliper mounting brackets (featuring stainless steel thread inserts for the radial mount bolts for max service life).
- Stainless steel braided brake lines
- All necessary mounting hardware for quick, easy bolt-on installation.
- Comprehensive fitment and bed-in instructions.
